The A6-EVO is a compact but extremely powerful floor standing loudspeaker designed to provide a natural and smooth sound reproduction: it’s simply the best speaker of this size we have ever made and it’s distinctive in its beautiful slim diamond shaped design.
The new 12 cm SEAS treated paper front mid-woofer drivers feature massive magnets to control power guaranteeing ultraextended bass response while offering a higher efficiency for maximum resolution.
To provide exceptionally fast transient response and retain full natural music reproduction, the two mid-bass drivers have a 12dB/Octave set up at 2000Hz/60Hz range, where the 15cm SEAS ultra rigid woven polypropylene internal subwoofer driver kicks in. The subwoofer is located in a separate sealed chamber at the bottom of the speaker and features a dedicated crossover network and bass reflex port faced to the floor that with the help of its special designed wooden stand allows no critical room positioning and perfect bass power impact.
The subwoofer driver is realized through metal injection moulding to create a supporting structure specifically designed for powerful bass reflex speakers and combined with a special spider ring and ultra-elastic suspensions with insertion cuts to achieve greater extension and power but also finer details.
The custom 1” silk dome tweeter is tuned to match the speaker shape and features an rigid aluminum flange to deliver crystal clear high-frequencies with full power.
The cabinet features two diamond shaped side panels with aluminum inserts thus resulting in a stronger, more rigid structure to enhance power control.

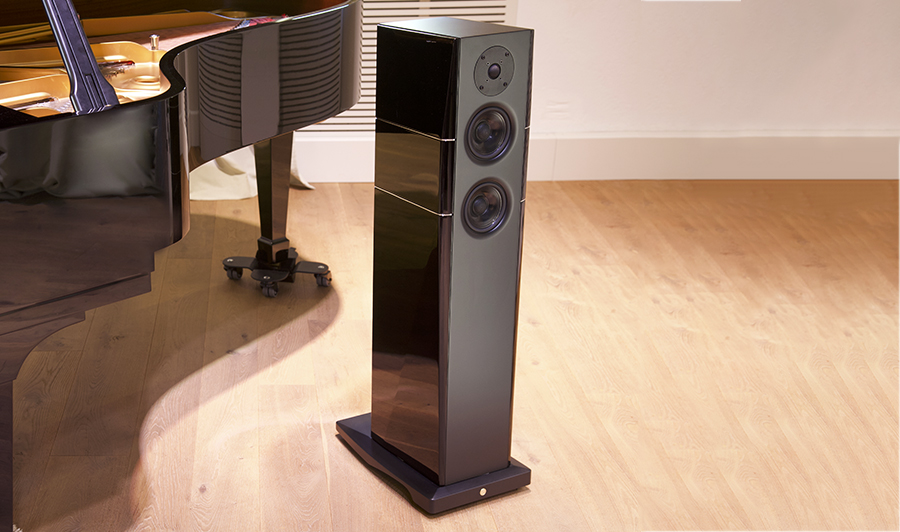

The speaker lays on a solid and elegant wooden stand with a bottom bass reflex port.
The crossover components are exclusively made by Mundorf and Clarity: no compromises have been made on the design and only top quality parts have been chosen.
Tower 3 way double Bass Reflex loudspeaker featuring easy positioning design and floor faced sub-woofer bass reflex port
FREQUENCY RESPONSE
40-20000Hz ±3dB
SENSITIVITY
88dB SPL 2,83V/1m
NOMINAL IMPEDANCE
4Ω
SUGGESTED POWER AMPLIFIER
min. 20Watt
MAX POWER HANDLING
150W RMS
CROSSOVER
60Hz and 2000Hz @ 12dB/Oct.
CONNECTORS
Gold Note gold plated nickel-free
UPGRADE CROSSOVER
Special components on demand
TWEETER
1” AUDAX silk dome driver
MID-WOOFER
2 x 5’’ SEAS treated paper cones
SUB-WOOFER
6’’ SEAS woven polypropylene cone
DIMENSIONS
230mm W x 1080mm H x 285mm D
WEIGHT
Kg. 60/pr. net
Kg. 80/pr. boxed
CABINET
Black
SIDE PANELS
Glossy Italian Walnut or Black Glossy
