SUPERIOR AUDIO PURITY

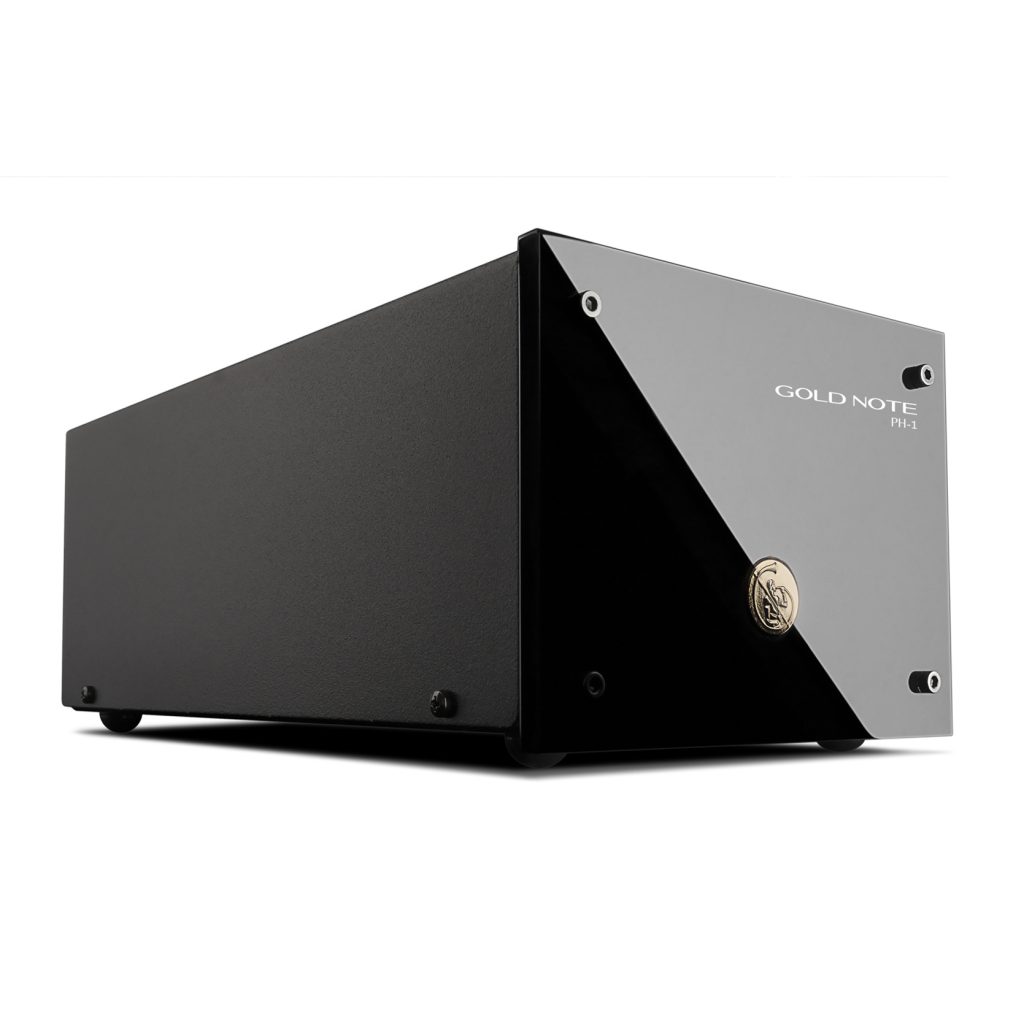

The PH-1 is a compact MM and MC phono preamplifier that can be used with a large variety of High-End audio phono cartridges.
Featuring a toroidal power supply, the PH-1 is ideal to match low output MC cartridges down to 0.15mV. To optimise audio performances, the PH-1 is powered by a quadruple stabilized gain stage allowing it to work perfectly with MM and MC cartridges without needing an external step-up transformer, even when used with phono cartridges having less than 10Ω internal impedance.
EXTERNAL POWER SUPPLY
PH-1 brings superior and impressive audio purity into any audio system and reaches its very best performance when used with its dedicated external super Power Supply Unit PSU-1 (optional).
THD (TOTAL HARMONIC DISTORTION)
<0.05% THD @ 20Hz – 20KHz
SIGNAL TO NOISE RATIO
-88dB
DYNAMIC RESPONSE
105dB
FREQUENCY RESPONSE
20Hz – 20KHz @ +/- 3dB

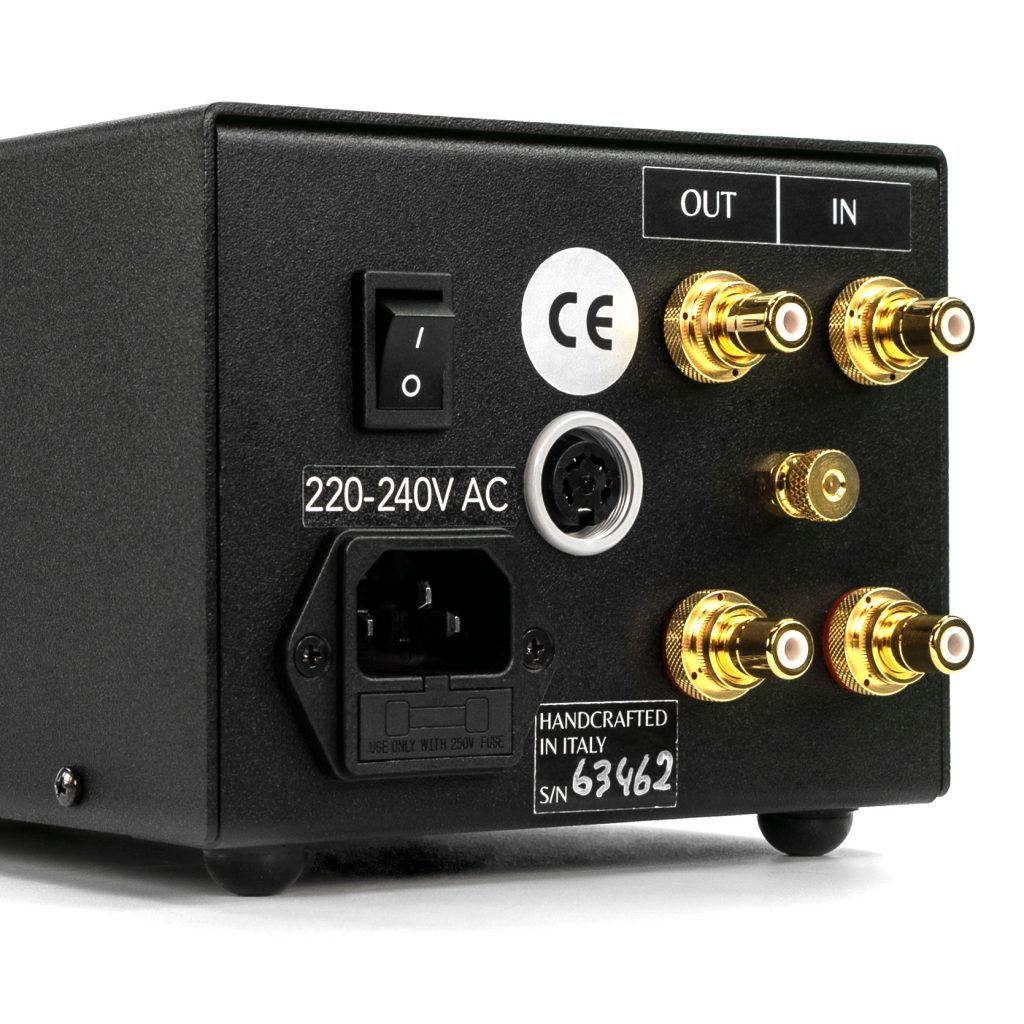

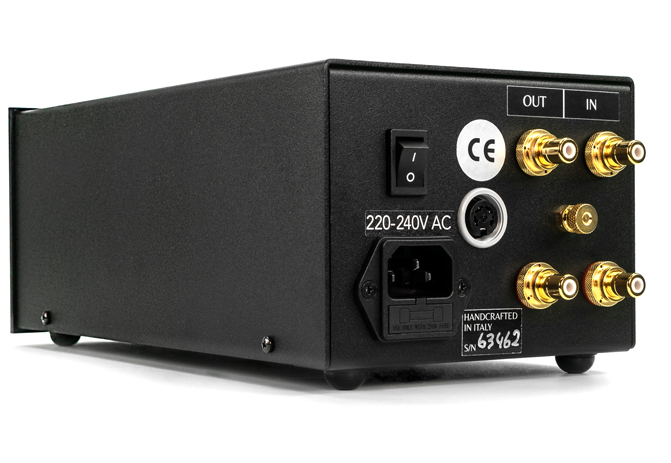

ANALOGUE INPUTS
1x stereo RCA MM or MC
INPUT SENSITIVITY
0.15mV MC, up to 7.0mV MM
INPUT IMPEDANCE
470Ω MC or 47kΩ MM
GAIN
65dB MC or 45dB MM
AUDIO OUTPUT
1x stereo RCA
OUTPUT IMPEDANCE
50Ω
LINE OUTPUT LEVEL
2V RCA fixed
POWER CONSUMPTION
max 20W
POWER SUPPLY
100-120V / 220-240V, 50/60Hz
FUSE
0,25A F/T
DIMENSIONS
100mm W | 105mm H | 260mm D
WEIGHT
Kg. 2.5 – net
Kg. 4 – boxed
FRONT PANEL
Black Glossy Grand Piano
CHASSIS
Black Powder Coated
EXTERNAL POWER SUPPLY
PSU-1 External Inductive Power Supply
