Compact and powerful: our new Mono/Stereo power amplifier

The new PA-10 EVO is a compact and versatile power amplifier, fully balanced and with high-power output, designed for modern High-End audio systems.
Musically engaging and controlled, capable of driving a wide selection of loudspeakers with power and control.

The PA-10 EVO can be used in Stereo or Mono mode, with two units as monoblocks to get the best audio performance. Carefully designed with select components, meticulously assembled and tested by hand, it features the ultra-solid chassis of the Series 10 in solid aluminium, inspired by the Italian style and our modular philosphy. Despite the size, the PA-10 EVO is extremely capable and efficient, delivering up to 140W in Stereo (8Ω) and up to 280W in Mono (8Ω).

Thanks to the adjustable damping factor, the amp can be perfectly matched with any loudspeakers – 3-way floor-standing designs as well as mini-monitors. Featuring both balanced and unbalanced inputs, it can be connected to all sorts of sources and thanks to the GN Link technology, the amp can be easily switched ON/OFF from the source in master-slave mode.

Paired with the DS-10 EVO and the A3 EVO II (or A6 EVO II) loudspeakers, the PA-10 EVO is the ideal power amplifier for a contemporary, compact high-performance system.

Please Note – The PA-10 EVO cannot be matched to the PA-10, but it is fully compatible with all of our electronics, pre-amplifiers and valve output stages.

MAIN FEATURES

POWER OUTPUT(THD 1%) 2x 140W @ 8Ω / 4Ω (Stereo) 1x 280W @ 8Ω / 4Ω (Mono) FREQUENCY RESPONSE 5Hz-50kHz (@ -3dB)
TOTAL HARMONIC DISTORTION (THD) 0,01% (1kHz @ 1W) DAMPING FACTOR High = 250 or Low = 25

INPUTS AND OUTPUTS

AUDIO INPUTS 1x RCA Stereo unbalanced 1x XLR Stereo balanced INPUT SENSITIVITY 2,5Vrms RCA/XLR INPUT IMPEDANCE 3,6kΩ RCA 7,2kΩ XLR
AUDIO OUTPUTS Speaker terminals: Binding posts

POWER

POWER CONSUMPTION <1W standby <6W no signal
POWER SUPPLY 100-240V, 50/60Hz FUSE 5A T

DIMENSIONS AND WEIGHT

DIMENSIONS 200mm W | 80mm H | 260mm D
WEIGHT Kg. 3 – net Kg. 4 – boxed

FINISHES

BLACK
Black anodised aluminium with a traditional brushed finish

SILVER
Silver anodised aluminium with a traditional brushed finish

GOLD
Gold anodised aluminium with a traditional brushed finish

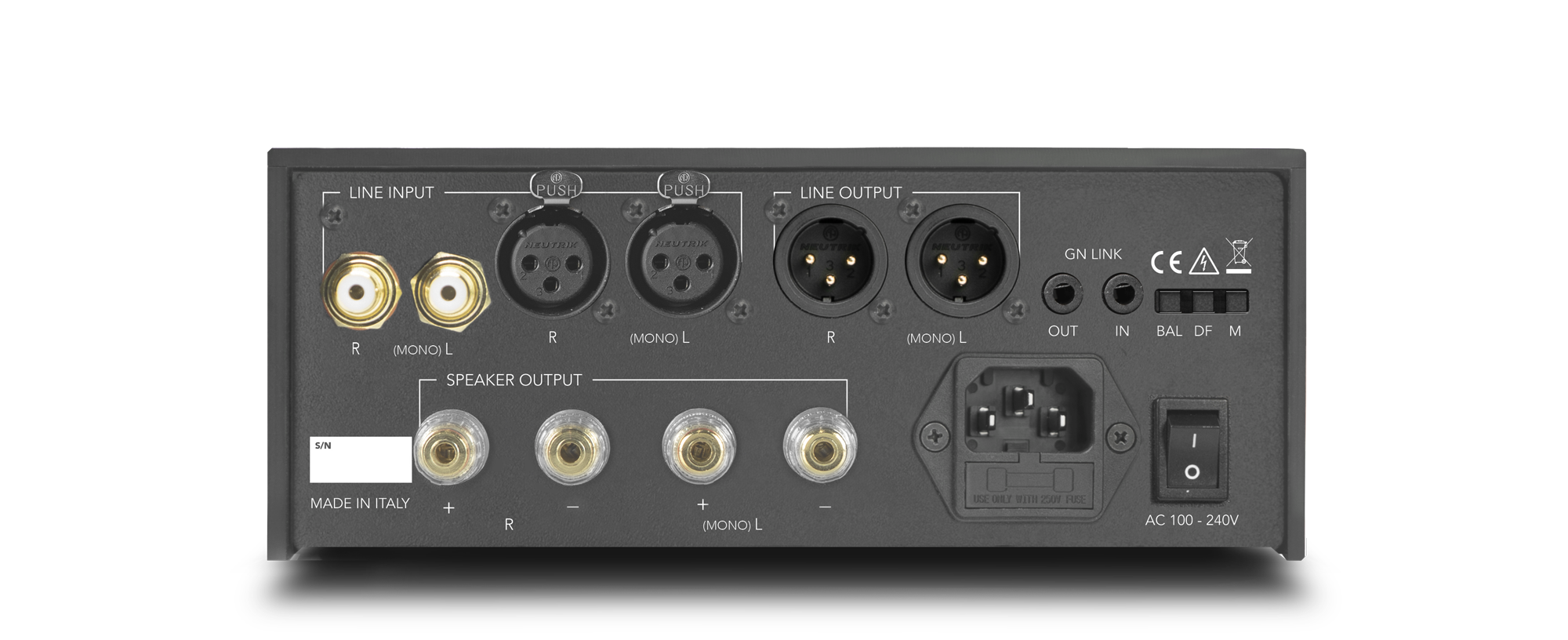

REAR PANEL

OPERATING CONDITION LIMITS

TEMPERATURE

From 0°C to 35°C

HUMIDITY

90% without condensation
