INPUTS TUBE
1x XLR Line In
1x RCA Line In
1x Tube In (5-pole XLR for Gold Note sources only)
BLACK
Black anodised aluminium with a traditional brushed finish

SILVER
Silver anodised aluminium with a traditional brushed finish

GOLD
Gold anodised aluminium with a traditional brushed finish

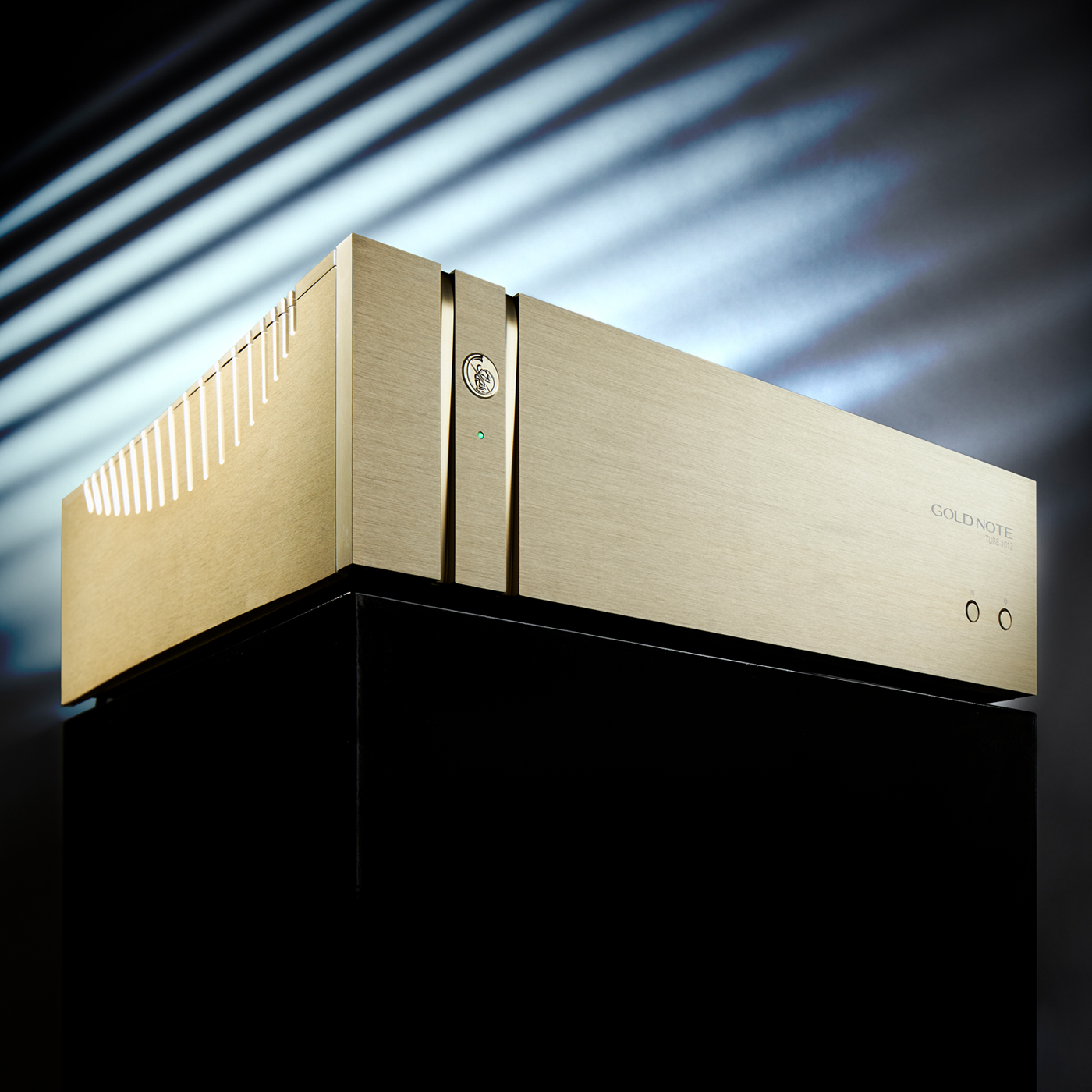

TUBE-1012 improve the performance of Gold Note electronics, reaching a completely new level thanks to the 12-valve class A output stages. Gold Note sources and amplifications guarantee great control and definition while providing exceptional realism in recreating the musical event. But those who love the warm sound of valves and want to bring their system to its maximum performance will find TUBE-1012 the right choice. Working in perfect synergy with Gold Note electronics, you can have a wonderfully natural sound and a High-End listening experience.
The proprietary Totem-Pole design, with six independent audio stages per Tube, ensures an ultra-wide bandwidth response and ultra-low distortion, guaranteeing a pure audio signal. Thanks to the new audio inputs on the rear panel, our valve output stages can be connected simultaneously to two sources: using the Tube input for Gold Note sources and the line input for those from other manufacturers. The input is selectable from the front panel for maximum convenience and ease of use.
Explore the Series
More products from the 1000 Series
XS-85
XS-85 is a 3-way, full-range floorstanding loudspeaker with…
A6 EVO II
A6 EVO II combines a diamond-shaped, ultra-rigid cabinet…
PSU-1250
PSU-1250 is a super-inductive external power supplies for…
PA-1175 MkII
PA-1175 MkII is a Class AB power amplifier with a…
P-1000 MkII Deluxe
P-1000 MkII Deluxe is a Class A preamplifier with a…
IS-1000 MkII Deluxe
IS-1000 MkII Deluxe is Gold Note's All-In-One flagship,…
DS-1000 EVO Line
DS-1000 EVO is Gold Note's most advanced streaming DAC,…
CD-1000 MkII Deluxe DSD
CD-1000 MkII Deluxe DSD combines a CD player and DAC in a…
PH-1000
PH-1000 is Gold Note's flagship phono stage, offering…
Pianosa
Pianosa reflects Gold Note's full turntable philosophy,…
![]() TUBE-1012View product | ![]() DS-10View product | |
| TUBE-1012 | Totem-Pole Output Stage design | - |
| MAX INPUT (THD < 1%) | RCA 6Vrms | - |
| MAX OUTPUT (THD < 1%) | RCA 8Vrms | - |
| OUTPUT IMPEDANCE | <600Ω | 50Ω |
| GAIN | 2dB | - |
| RECOMMENDED LOAD | >10kΩ | - |
| TUBES | 12 valves 6n1p | - |
| THD+N | 0.0028% @ 1kHz – 1.736V | - |
| S/N | >100dB @ 1kHz – 1.736V | - |
| POWER CONSUMPTION | 80W | 35W |
| POWER SUPPLY | 100-120V or 220-240V, 50/60Hz | - |
| FUSE (220/240V) | 2A F | - |
| FUSE (100/120V) | 3,15A F | - |
| DIMENSIONS | 430mm W | 135mm H | 370mm D | 200mm W | 80mm H | 260mm D |
| WEIGHT | Kg. 16 net – Kg. 21 boxed | Kg. 4 – net |
| D/A CONVERTER | - | AKM AK4493 PCM up to 32bit/768kHz and DSD512 |
| FREQUENCY RESPONSE | - | 20Hz-20kHz +/-0.1dB |
| THD (Total Harmonic Distortion) | - | 0.001% max |
| SIGNAL TO NOISE RATIO | - | 125dB |
| DYNAMIC RANGE | - | 120dB |
| PREAMP STAGE VOLUME CONTROL | - | Enabled/Disabled |
| NETWORK CONNECTIVITY | - | LAN/WLAN (WiFi) 802.11b/g (10/100Mbps) Bluetooth: High Definition 5.0 (44/16) |
| HIGH QUALITY STREAMING | - | Roon Ready, Airplay, MQA, Qobuz, Deezer, Spotify Connect, Tidal, vTuner |
| SUPPORTED AUDIO FORMATS (NETWORK) | - | Up to PCM 32bit/384kHz |
| SUPPORTED MEDIA SERVERS | - | All UPnP |
| DIGITAL INPUTS | - | 1x RCA coaxial PCM asynchronous up to 24bit/192kHz |
| ANALOGUE INPUT | - | 1x 3.5mm mini-jack (input impedance 10kΩ) |
| AUDIO OUTPUTS - FIXED | - | 1x unbalanced RCA 2Vrms |
| AUDIO OUTPUTS - VARIABLE | - | 1x unbalanced RCA |
| FUSE | - | 2A T |
| REMOTE CONTROL | - | Multifunctional remote control included |
| EXTERNAL POWER SUPPLY | - | PSU-10 EVO External Inductive Power Supply |
