Ultimate performance CD Player

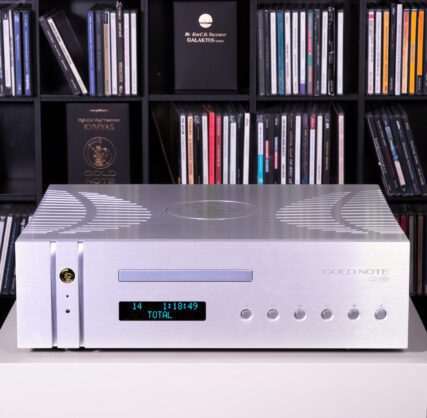

The CD-1000 MkII Deluxe DSD, housed in a beautiful brushed aluminium chassis, integrates a digital and an analogue stage into a single, elegant device. It is designed to listen to music from a CD as well as to play audio files from a TV or DVD player connected via optical or coaxial input. The CD-1000 MkII delivers a natural, detailed and powerful sound, and can be easily integrated into any Hi-End stereo system. CD-1000 MkII Deluxe DSD supports Gapless playback and is equipped with a top-of-the-range 24bit/192kHz digital converter and digital inputs such as the S/PDIF coaxial and the TOS optical to get the best out of your system. The aluminium JPL-2800 transport mechanism made in Austria by Stream Unlimited is one of the best in the world and ensures maximum stability avoiding fluctuations or loss of definition. The CD-1000 MkII Deluxe DSD integrates our Zero-ClockTM technology which allows for an effective reduction of jitter, and features a digital volume control that can be used to drive directly a power amplifier or active speakers.

The CD-1000 MkII Deluxe DSD equipped with the integrated DAC BurrBrown PCM1792A and a USB-B port (supporting up to DSD256 and PCM 32bit/384kHz).

The CD-1000 MkII Deluxe DSD can be paired with external units that allow further improvement of its exceptional audio performance:
TUBE-1012 – class A valve output stages developed with 12 valves
PSU-1250 – super inductive external power supply dedicated to the Gold Note series 1000.

MAIN FEATURES

CD-PLAYER CD transport with integrated D/A converter DAC STANDARD model: 24bit/192kHz DAC PCM1796 DELUXE model: 24bit/192kHz DAC PCM1792A FREQUENCY RESPONSE 20Hz-20kHz @ +/-0.3dB THD – TOTAL HARMONIC DISTORTION 0.001% max SIGNAL TO NOISE RATIO 128dB DYNAMIC RESPONSE 127dB
VOLUME CONTROL Switchable On/Off digital partializer MECHANIC Aluminium JPL-2800 Stream-Unlimited SPEED FLUCTUATION 0.0001% CD FORMATS Red Book DISC COMPATIBILITY CD, CD-R, CD-RW GAPLESS PLAYBACK Supported REMOTE CONTROL Multifunctional remote included

INPUTS AND OUTPUTS

DIGITAL INPUTS 1x RCA S/PDIF coaxial 1x TOS 24bit/192kHz 1x USB-B DSD256 and 32bit/384kHz (CD-1000 MKII DSD model only) ANALOGUE OUTPUTS 1x unbalanced RCA 1x balanced XLR 1x TUBE-1012
DIGITAL OUTPUTS 1x S/PDIF Coax 75Ω OUTPUT IMPEDANCE 50Ω LINE OUTPUT LEVEL RCA 2Vrms XLR 2Vrms

POWER

POWER CONSUMPTION 30W POWER SUPPLY 100-120V or 220-240V, 50/60H Dual-Mono power supply
FUSE (220/240V) 1A F/T FUSE (100/120V) 2A F/T

DIMENSIONS AND WEIGHT

DIMENSIONS 430mm W | 135mm H | 375mm D
WEIGHT Kg. 12 – net Kg. 16 – boxed

FINISHES

BLACK
Black anodised aluminium with a traditional brushed finish



SILVER
Silver anodised aluminium with a traditional brushed finish

GOLD
Gold anodised aluminium with a traditional brushed finish

REAR PANEL

REMOTE CONTROL

REMOTE CONTROL Multifunctional remote control included

UPGRADES

EXTERNAL POWER SUPPLY PSU-1250: external inductive Dual-Mono power supply (300W) PSU-1000: external inductive Dual-Mono power supply (200W)
VALVE OUTPUT STAGES TUBE-1006: Class-A 6 Tubes output stages with Dual Mono/inductive tube power supply TUBE-1012: Class-A 12 Tubes output stages with Dual Mono/inductive tube power supply

WINDOWS DRIVER

If you are using Windows, please download and install the dedicated driver for your PC

If you are using Windows 11 and experiencing issues, please install the alternative driver
