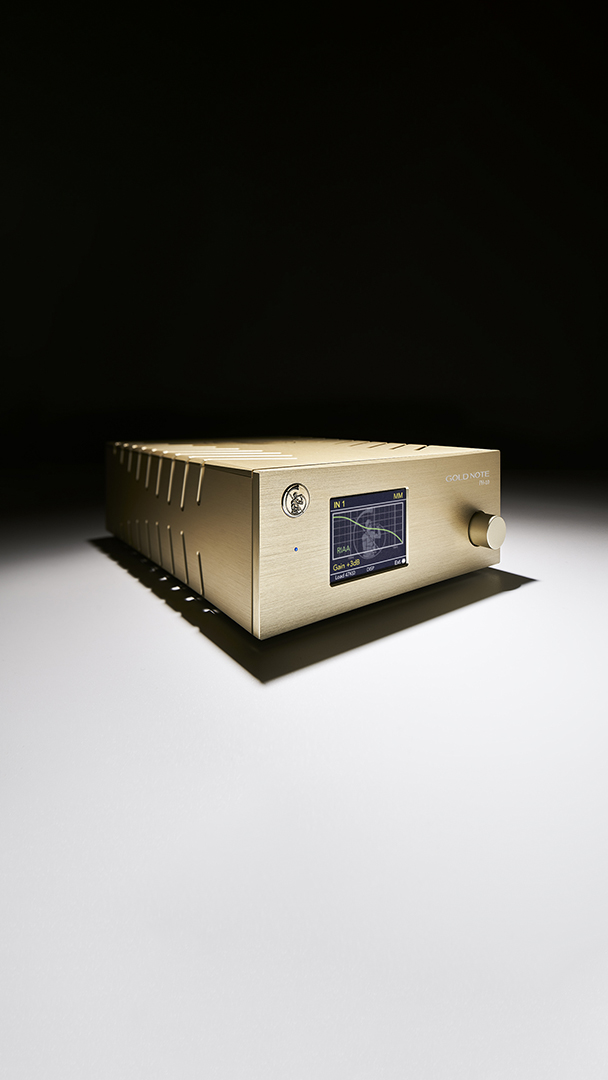

THE EXTRAORDINARY PHONO STAGE
The PH-10 is an ultra-versatile phono preamplifier that offers unique features, including EQ CURVES, LOAD, and GAIN adjustments: a fully analogue design, engineered exclusively with the best components to recreate the musical event in the most natural way possible.
To control the PH-10 we developed the user-friendly Single Knob Control (SKC). Combined with the color display this rotary joggle allows quick adjustments of any function in real-time during music playback.
The PH-10 lets you select the most appropriate EQ curve for every record: the RIAA, the DECCA LONDON, or the AMERICAN COLUMBIA, and all selection appears clearly on the display.
Each curve can be “enhanced” with our proprietary technology inspired by the Neumann Cutting Lathe for superior dynamic and musicality.
THE PERFECT CARTRIDGE MATCHING
9 different LOAD options [10Ω, 22Ω, 47Ω, 100Ω, 220Ω, 470Ω, 1000Ω, 22kΩ, 47kΩ] and 4 different selectable GAIN options [0dB, ± 3dB, +6dB] will let you adjust the preamplifier accurately to achieve the best sound experience with any kind of MM and MC cartridges.
CONNECT TWO SEPARATE TONEARMS
With his two separate RCA inputs, the PH-10 can be connected to two different tonearms, each with independently adjustable settings stored into memory, even when the unit is switched off, guaranteeing flexibility and impressive user-friendliness.
PH-10 AT ITS BEST
To maximize the performance of the PH-10 we also developed the PSU-10, a dedicated external super inductive power supply that allows the phono stage to achieve its fullest potential, reaching an even higher degree of musical realism, better dynamics, and greater three-dimensionality sound.
EQUALISATION CURVE CONTROL
3 EQ curves (RIAA, Decca London, American Columbia) all with Enhanced option
INFRASONIC FILTER
10Hz/36dB octave
FREQUENCY RESPONSE
20Hz /20kHz
[Enhanced 20Hz-50kHz] @ +/-0.3dB
THD (Total Harmonic Distortion)
<0.05% @1kHz
SIGNAL TO NOISE RATIO
89dB
DYNAMIC RESPONSE
105dB

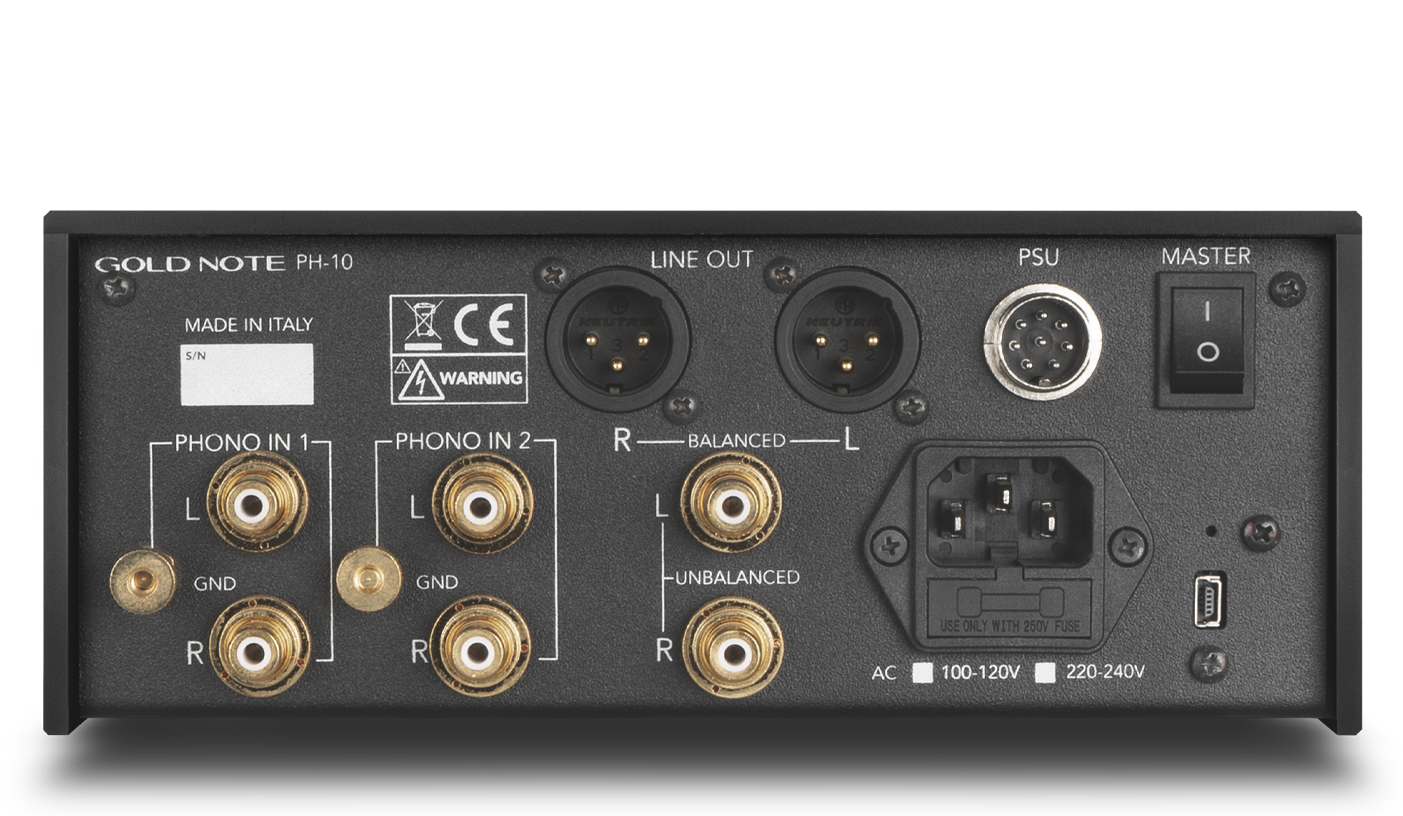

ANALOGUE INPUTS
MM/MC two independent stereo RCA
INPUT SENSITIVITY
0.1mV MC up to 10.0mV MM
INPUT IMPEDANCE
9 options [10Ω, 22Ω, 47Ω, 100Ω, 220Ω, 470Ω, 1000Ω, 22kΩ, 47kΩ]
GAIN
45dB MM to 65dB MC with 4 options [0dB, ± 3dB, + 6dB]
CAPACITANCE (MM ONLY)
220pF
AUDIO OUTPUTS
1x unbalanced RCA
1x balanced XLR
LINE OUTPUT LEVELS (fixed)
RCA @ 2V
XLR @4V
OUTPUT IMPEDANCE
50Ω
POWER CONSUMPTION
10W Super Linear supply
STANDBY CONSUMPTION
< 0,5W
POWER SUPPLY
100-120V or 220-240V, 50/60Hz
FUSE
0,5A F/T
DIMENSIONS
200W | 80H | 260D mm
290W | 180H | 390D mm – boxed
WEIGHT
Kg. 3 – net
Kg. 4 – boxed
BLACK
Black anodised aluminium with a traditional brushed finish
SILVER
Silver anodised aluminium with a traditional brushed finish
GOLD
Gold anodised aluminium with a traditional brushed finish
PH-10
1590,00€
EXTERNAL POWER SUPPLY
PSU-10 External Inductive Power Supply
VERSION 153
• introduced brightness adjustment for the display.
• correction of minor bugs (MCU).
To download and install the latest firmware version, click on the firmware update button below.
If your PH-10 has a serial number <56802, the first firmware update has to be performed by your GN dealer.
